TH-UQ SERIES Normal-Temperature and Pressure Jet Dyeing Machine
Back to Product list

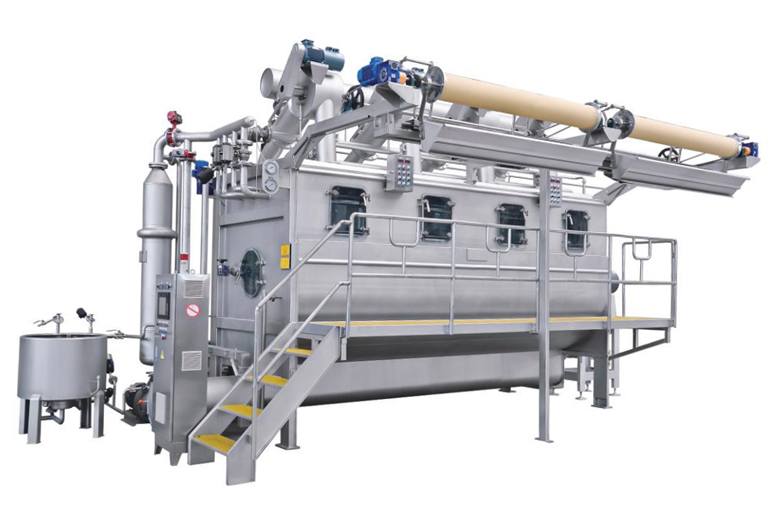

TH-UQ SERIES Normal-Temperature and Pressure Jet Dyeing Machine
The TH series of normal-temperature jet dying machine independently researched and developed by WUXI TONGHUA DYEING FINISHING MACHINERY CO.,LTD.Not only inherits the advantages of airflow dying and jet dyeing,but also displays the advantages of water saying,steam saving and electricity saving.The independent dyeing liquor circulation and air circulation system constitute the conditions of even dyeing an wrinkle resistance during the fabric circulation along with filleting,to make the fabric fulfill even dyeing within relatively short period of time.
該機(jī)適用于纖維素纖維、聚酰胺（錦綸)纖維類的針織物和梭織物在常溫下的染色、前處理及后處理。適用織物克重范：70-500g/㎡。The machine is suitable for the dyeing,pre-processing and post-processing of knitted fabrics and woven fabrics in cellulose fiber, polyamide fiber.The fabric weight range is 70~500g/㎡.
電話

HOTLINE

+086-510-83381128
★ The fan rating power is reduced by a half compared to traditional airflow atomizing dyeing machine.
★ The dyeing liquor jet and airflow jet are respectively used for fabrics,which can fully guarantee the even dyeing of fabrics and show the wrinkle resistance and craft once again.
★ There is little space of improvement for fabrics,which can reduce the tension of fabrics;especially elastic fabrics,so as to reduce the damage of tension on elastic fibers.
★ The patent lower heating rate can control the dyeing liquor circulation system,which can effectively control the lower heating rate, which is especially suitable for the dyeing of sensitive colors.
★ The jet airflow can make the fabrics better expand broad-wise,which makes the knited fabrics with high compactness free from wrinkles.
★ It also offers multiple groups of dyeing liquor nozzle can satisfy the dyeing craft of multiple fiber fabrics.

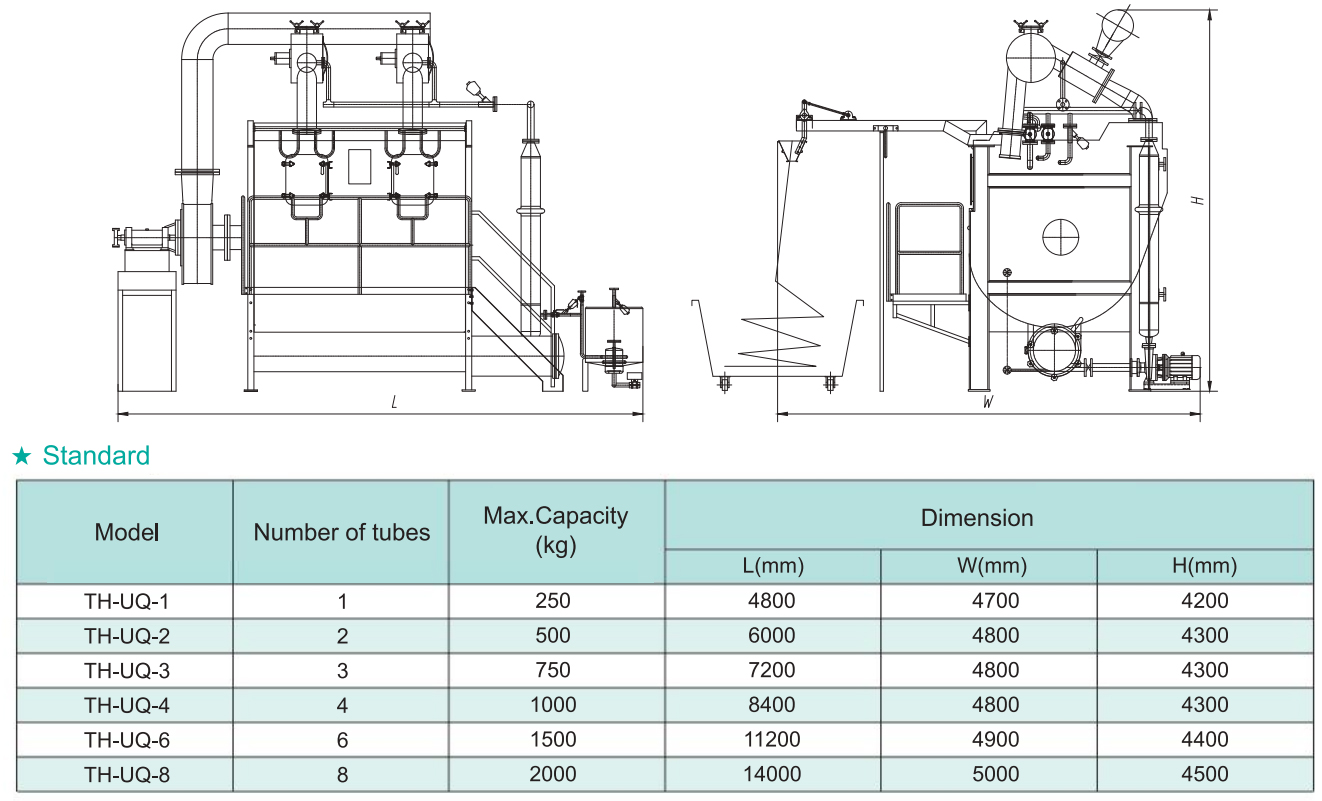

★ Maximum working temperature(℃)   98
★ Number of tubes   1、2、3、4、6、8
★ Bath Ratio Range   1:3-1:4
★ Fabric Linear Velocity(m/min)  70~500
★ Steam Pressure(Mpa)  0.4~0.6
★ Preheating water auxiliary cylinder
★ Multiple distribution bucket
★ Automatic hair catcher

With the goal of serving the global field of printing and dyeing machinery, Tonghua Dyeing Machine will become the top supplier of printing and dyeing machinery in China.
